Local Directories from YMCS

  • Updated

Do you want to push out a local directory to your Yealink handsets from one central place? You've come to the right place.

Note: You cannot push out directories onto Yealink cordless handsets, such as
the W60Bs etc from YCMS



Prerequisites:

  • Your Yealink handsets need to be connected to and online on the YMCS platform
    • Telair Support can do this for you if not already done.
  • Login details for the YMCS portal
    • If you do not have access, you can request this by emailing the Telair Support team on support@telair.com.au
  • A list of contacts you would like to have in your handset directories

How to:

  1. Log into YMCS and select the "Resource Management" option on the left-hand side.
    Resource Management.png

  2. Select "+ Add Resource" in the top-right.
    Add Resource.png

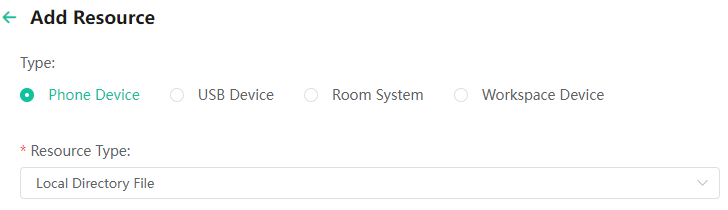

  3. Select "Local Directory File" as the Resource Type.
    Local Directory File.png

  4. Name the "Resource Name" appropriately.
    Resource Name.png

    1. Our preferred format is - PBXName_LocalDirectory

  5. Select the "Site" your PBX to apply it.

  6. In the "Select the file" section use the XML file generator to create your directory XML file. Then upload it.
    XML file generator 1.pngXML file generator 2.png

  7. The "Description" section is optional.

  8. When completed press the OK button at the bottom left.

  9. You should then be able to see the resource you just created.

  10. Select the "Push" option from the right-hand side under "Operation".

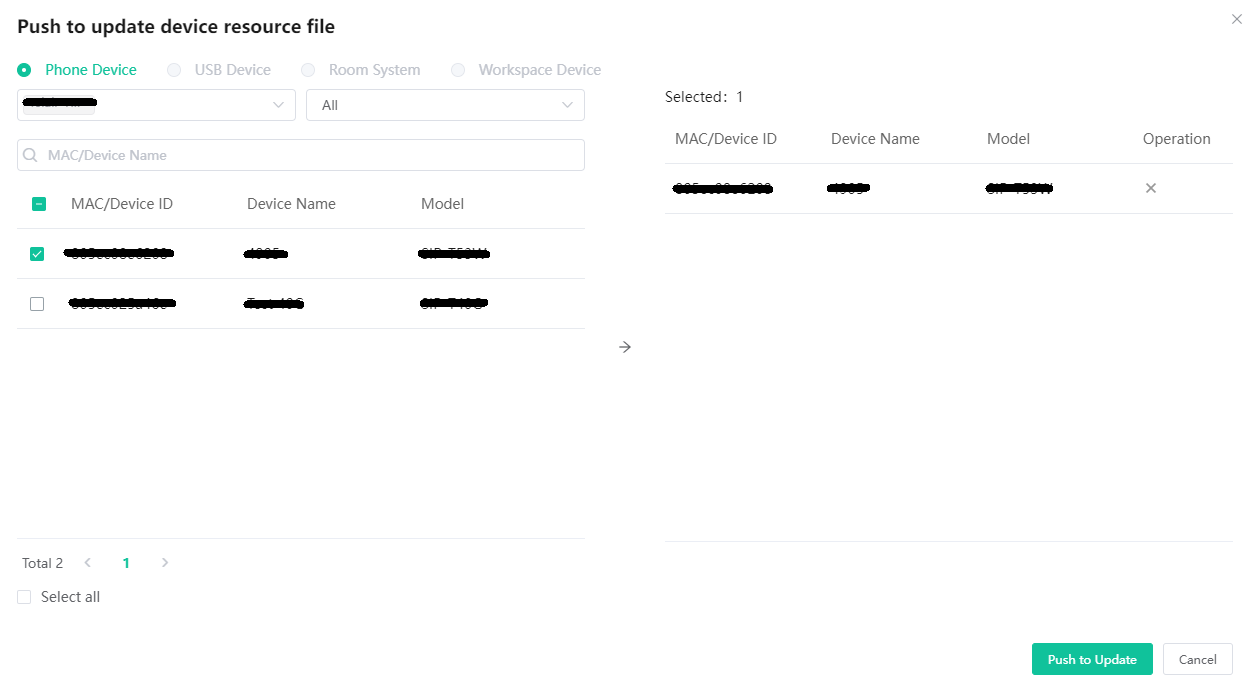

  11. Select the handsets you would like to push the directory to.

  12. Once you have finished selecting the handsets click the "Push to Update" button in the bottom right.
    Push to Update.png

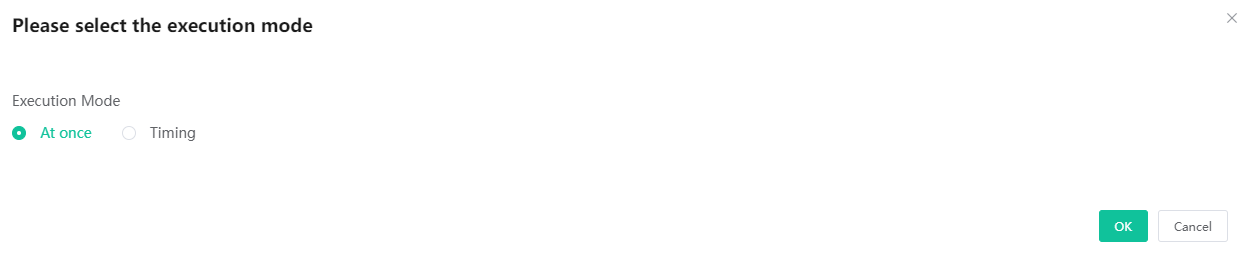

  13. It will ask you when you would like to push this, select the option you would like (usually "At once"), and click the "OK" button on the right.
    Push Options.png

  14. It should then have the little pop-up of "Operate successfully!" at the top in the middle.
    Operate successfully.png

  15. Voilà, the handsets you pushed the local directory out to should now have it.
