Overview
Linked Office allows you to link a non-MyCloudPBX phone system, such as 3CX, to the MyCloudPBX and take advantage of the call flow functionality such as Day/Nights, Holidays, and Announcements. This is registered to the PBX using an authentication ID and password, similar to a regular SIP trunk.
Create or Modify a Linked Office
From the PBX homepage, click 'Offices & Users'.

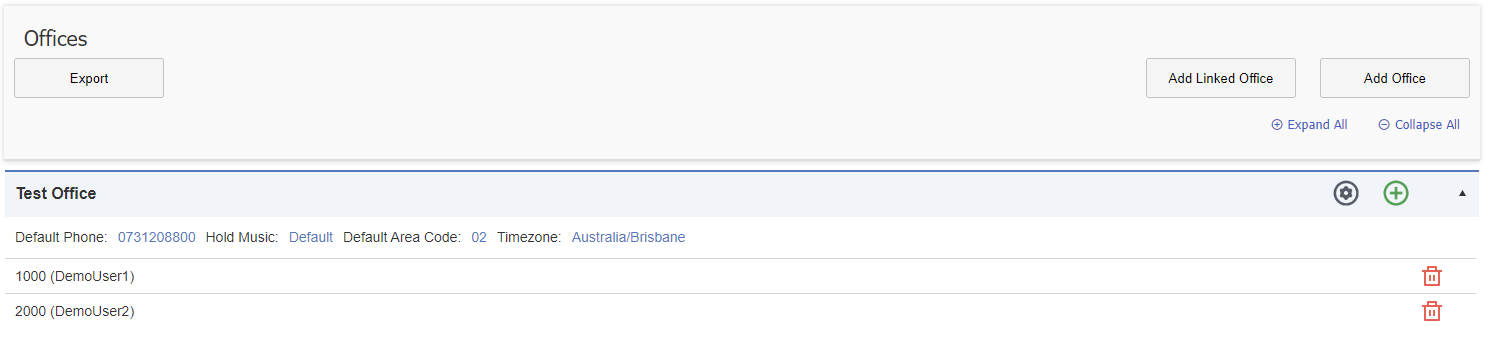

On this page, you will see an overview of each configured Office:
- To Add a Linked Office, click the “Add Linked Office” button.
- To Delete a Linked Office, click the
button.
- To Modify a Linked Office, click on the
button.

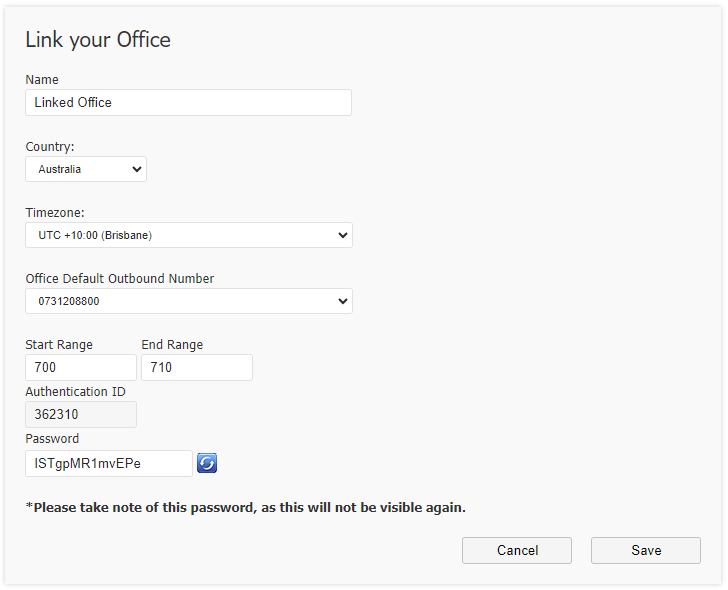

Linked Office Settings
- Name: Name of the office. This is just for your reference.
- Country: Country of the phone numbers.
- Timezone: Timezone of the office. We recommend using the correct time zone to avoid discrepancies in call routing and reporting.
- Office Default Outbound Number: Outbound phone number for calls made by the Linked Office.
- Start/End range: Extension Number Range. Internal calls made to these extension numbers will be directed to the PBX
- Authentication ID & Password: Registration details for your PBX.
