This page contains ad-hoc device configuration information.
Grandstream HT802
Finding the device's IP
- Plug an analog phone into the FX1 Port
- Dial *** (triple star).
- Select option 02 at the prompt.
- The device's IP Address will be now read back to you.

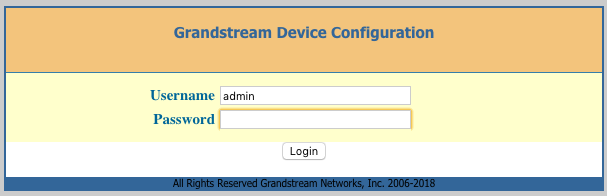

Logging into the HT802s management portal
Enter the IP Address into your web browser.
If this is a new HT802, Grandstream set the default credentials to:
- Username: admin
- Password: admin
Click 'Login‘
Security Settings

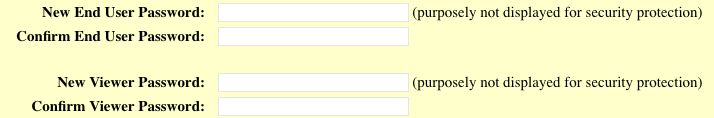

Reset Admin, User, and Viewer passwords.
Click on the 'Basic‘ tab.
It is strongly recommended that you reset the above passwords immediately.
Click on the 'Admin‘ tab.
It is strongly recommended that you reset the above password immediately.
Warning: Not resetting the above passwords can lead to toll fraud and very high bills.
Disable HTTP access
Click on the 'Basic' tab.
- Set 'Web Access Mode‘ to HTTPS only.
- Set 'Disable SSH' to 'Yes'.
Network Settings
Click on the 'Basic‘ tab.
You can configure your needed network settings on this page.
Click 'Apply‘ when finished.
You will need to reboot the device for your changes to apply correctly.
SIP Configuration
Click on the 'FXS PORT1’ tab.
- Set ‘Account Active’ to 'Yes‘.
- Set 'Primary SIP Server’ to the PBX domain. (EG: pinetree.mycloudpbx.com.au)
- Set 'SIP Transport‘ to 'TCP’.
- Set 'NAT Traversal‘ to 'Keep-Alive’.
- Set 'SIP User ID‘ to the ’Extension Number’.
- Set 'Authenticate ID‘ to the 'Extension Number’.
- Set 'Authenticate Password‘ to the 'Extension Password’.
- Set 'Register Expiration‘ to '1’. (minutes)
- Set 'Reregister before Expiration‘ to '15’. (seconds)
- Set 'Enable SIP OPTIONS Keep Alive‘ to 'YES’.
- Set the ’'Preferred Vocoder‘ order as follows.
